Pumpcrete

Pumpcrete is concrete pumping machine, it is the concrete trailer pump,portable concrete pump, the form of conveying concrete, transport concrete by hydraulic pressure and then delivery by pipeline.

Send Inquiry Chat Now

Description

Introduction

Pumpcrete is a special pouring pump designed for the long-distance delivery of fine stone, concrete, and mortar in high-rise buildings. Our pumpcrete pump distribution valve adopts an advanced S-tube valve, which has good sealing performance, a simple structure, and reliable quality. Our pumpcrete has been well received by many users.

Feature

The wear plate and floating cutting ring of Pumpcrete are made of carbide, which have the characteristics of good wear resistance, long service life, and easy replacement. Additionally, our cutting ring can automatically compensate for the gap structure.
This machine adopts an electro-hydraulic control mode, with perfect electro-hydraulic overload protection and an instrument display system. With an anti-pump running function, it is easy to troubleshoot blockages. The hydraulic system adopts a double pump and double circuit, ensuring stable, accurate, and reliable commutation. The pumping speed can be adjusted to meet various working conditions.
The centralized lubrication system automatically controls the start/stop and running time through the program, effectively extending the service life of rotating parts. Our main seals are made of high-quality materials to prevent internal and external leakage of the hydraulic system.

Parameter

Item	Unit	HBTS80-18-132R
Max. Theoretical Concrete Output(low/high)	m³/h	84/50
Max. Concrete Pumping pressure(low/high)	Mpa	10/18
Concrete slump	mm	100-230
Aggregate Size	mm	Gravel≤40 Pebble≤50
Engine Power	kw	132
Main oil pump	KAWASAKI
Hydraulic valve	BOLSEEN
Hydraulic hose	MANULI
Main electric element	SCHNEIDER
PLC Control computer	MITSUBISHI
Concrete Cylinder Diameter	mm	200/1600
Hopper Capacity	L	500
Filling Height	mm	1400
Max Theoretical Conveying Distance (Horizontal /vertical Height)	m	1200/200
Pipe Cleaning Mode		Water Washing
Dimension(transport)	mm	6200×2100×2200
Total Weight	kg	6250

Pumpcrete in details

Designed with a steel plate according to customer requirements to prevent concrete from splashing into the cylinder or the body of the pump, keeping it clean.

Support plates designed at the outlet to prevent concrete from falling to the ground, keeping the ground clean and making it convenient for workers to walk and preventing slipping.
Quick-type clamps to improve construction work, greatly saving time for pipe connections.

Success Case:

Delivery:

We have a professional loading team. One 40ft container can load 2 units of concrete pumps and 150m of delivery pipes, greatly saving your delivery cost.

Qualification Pumpcrete:

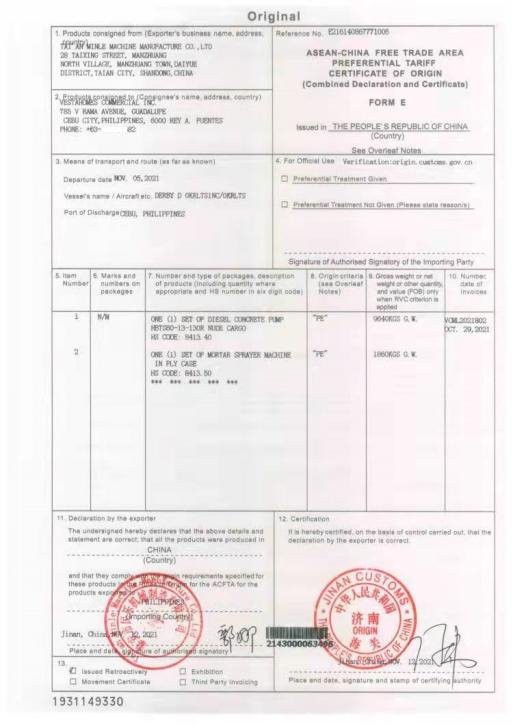

Form E Certificate can be available.

About operation: Programmable Logic Controller, electronic control system with fault display light, making it easy to check for problems when working.
